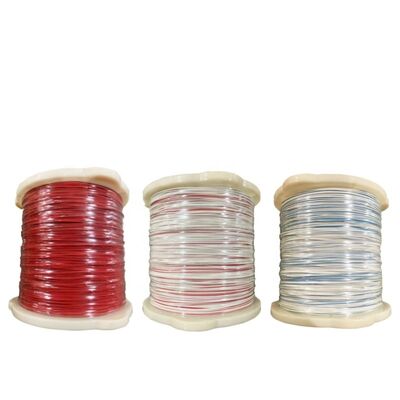

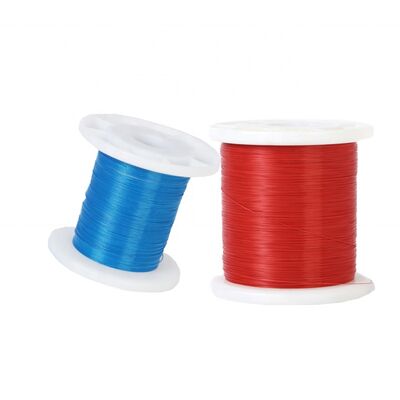

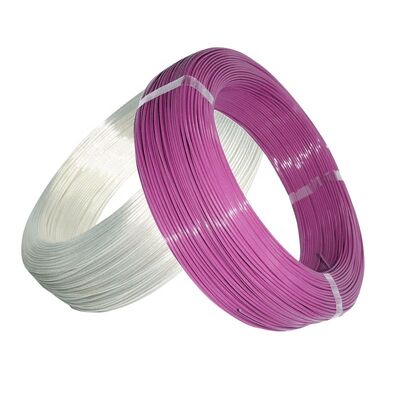

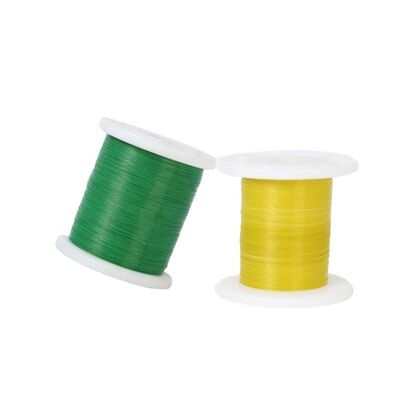

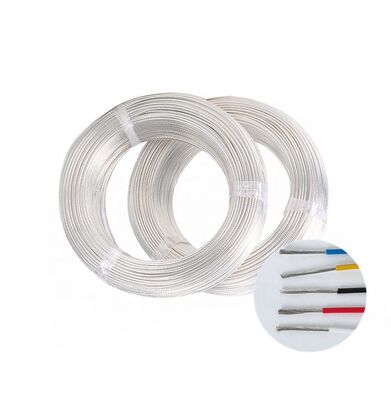

Tinned Coated TEFZEL Copper Wire 10 AWG 12AWG 14AWG
Applications
- Aviation Wiring
- Aerospace Wiring
- Nuclear Cables
- Electronics Wiring
- Medical Wiring
- Appliance Wiring
What is Tefzel Copper Wire?
Tefzel copper wire refers to copper wire that is insulated with Tefzel. This type of wire is known for its excellent chemical resistance, high-temperature stability, and low friction properties.
Key Characteristics
- High Temperature Resistance: Tefzel can withstand high temperatures, making it suitable for applications in harsh environments.
- Chemical Resistance: The insulation is resistant to a wide range of chemicals, which makes it ideal for use in industrial and laboratory settings.
- Electrical Properties: Tefzel has good dielectric properties, which helps in maintaining the integrity of electrical signals.
- Durability: The wire is resistant to abrasion and has a long service life, which is beneficial in applications where reliability is critical.
- Flexibility: Tefzel insulation allows for flexibility, making it easier to work with in various applications.
Tefzel copper wire is commonly used in aerospace, automotive, and industrial applications where performance and reliability are essential.
Technical Specifications
Nominal Voltage: AC 600V
Temperature Range: -65ºC to 150ºC
Conductor: Tinned copper
Insulation: Tefzel ETFE Insulation
O.D. Tolerance: ±0.05mm
Available Colors: black, brown, red, orange, yellow, green, blue, violet, gray, white, transparent, etc.
Wire Gauge Specifications
| Wire Gauge |
Section Area (mm²) |
Conductor Construction |
Reference OD (mm) |
Max. Conductor Resistance at 20℃ (Ω/Km) |
Reference Weight (kg/km) |
| 26AWG | 0.14 | 19/0.1 | 1.52 | 136 | 6.64 |
| 24AWG | 0.2 | 19/0.12 | 1.64 | 90.4 | 8.17 |
| 22AWG | 0.4/0.3 | 19/0.16 | 1.85 | 53.1 | 10.4 |
| 20AWG | 0.6/0.5 | 19/0.2 | 2.02 | 32.4 | 13.5 |
| - | 0.75 | 19/0.23 | 2.2 | 24.6 | 16.1 |
| 18AWG | 1 | 19/0.26 | 2.3 | 20.4 | 18.1 |
| 16AWG | 1.2 | 19/0.28 | 2.51 | 16.6 | 21.8 |
| - | 1.5 | 19/0.32 | 2.75 | 12.7 | 25.9 |
| 14AWG | 2 | 19/0.36 | 2.86 | 10 | 30.3 |
| - | 2.5 | 37/0.37 | 3.31 | 7.43 | 39.9 |
| 12AWG | 3 | 37/0.32 | 3.43 | 6.63 | 43.4 |
| - | 4 | 37/0.37 | 3.91 | 4.88 | 56.7 |
| 10AWG | 5 | 37/0.4 | 4.06 | 4.13 | 64 |
| - | 6 | 37/0.45 | 4.58 | 3.3 | 79 |
Company Information
Factory
Shenzhou Special Cable is a reputed manufacturer of military and consumer cables. Our main products include high temperature wires, PTFE wire, ETFE wire, PFA wire, FEP wire, robot cable, TPE cable, PUR cable, TPU cable, hook up wire, electronic wire, control cable, and power cable.
Team
To meet customer demand, we have advanced R&D staff, professional transport team, high-quality engineering installation team, professional technicians group, international sales department (6 people), domestic sales (15 people), and dedicated QC team.
Workshop
Production lines: 9 lines
Monthly production capacity: 90,000m
Production workers: about 250 persons
Annual production capacity: RMB 20 million
Advanced electrical, chemical and mechanical properties test equipment
Warehouse
More than 600 square meters finished product warehouse. The cable materials are produced by ourselves, including low smoke zero halogen compounds, XLPE compound, and soft PVC compound for cable insulation or sheath.
Product Testing
We focus on quality. Over the past years, our company seriously carries out its responsibility for product quality, guarantees repair, replacement and return for products that have quality problems during manufacture, and compensates for direct economic loss caused by quality problems.
Our Customers
In the past years, we participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, Power-Gen India, and more. With over 20 years experience in cable production, we hope that our profession and high quality service will bring you success and a satisfied purchasing experience.
Why Choose Us
Awards and Merits
We are a stable wire and cable supplier of China's aerospace and military. Customer satisfaction is our primary aim.
| No. |
Item |
Faulty Products |
Our Products |
| 1 | Length | Insufficient length | Sufficient |
| 2 | Wire Drawing | Thick at both ends and thin in the middle | Same from beginning to end |
| 3 | Conductor | Copper clad aluminum, Copper clad brass | 99.999% pure copper |
| 4 | Insulation | Recycled compound | Virgin compound |
Our Services
- Free technical consultation service before, during, and after sales, helping customers choose the right product
- Free sample and design services
- Fee service for any special monitor and conduct detection during manufacture process
- Provide 100% free insurance for internal transportation
- Accept OEM/ODM
- Small MOQ

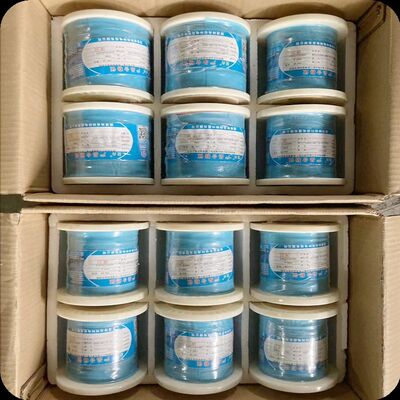

Packing & Shipping
Packaging Options:
- Polyethylene film winding in roll with non-woven bag or carton box
- Packing in carton box with plastic tray
- Wooden drums, fumigated wooden drums, wooden iron drums
We can supply fumigation package and certificate. Shipping by air, train, express or upon clients' demands.
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer, research, development and sales of military and consumer cable wire and cable compound. The company is located in Hunan Province, China.
2. What is your company's strengths?
We are a stable wire and cable supplier of China's aerospace and military, with 21 years experience in special wire field. Cable compounds are produced by ourselves, which is how we keep superior quality and competitive offers for global valued customers.
3. How do you guarantee your product quality?
Quality is our priority. We treat quality control as the first most important thing from the very beginning to the very end. In design, materials procurement, manufacturing, semi-finished products testing, and finished product inspection, we maintain strict control to ensure product quality.
4. What's the warranty of your products?
We provide 1 year complete warranty service. If the products have quality problems, we plan to replace or return unconditionally.
