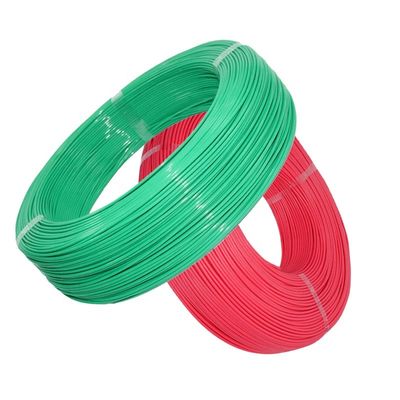

Factory Price FEP Insulated Custom Special Wire
FEP Insulation Wires feature excellent corrosion resistance, oil resistance, strong acid/alkali resistance, and oxidation resistance. These wires offer superior electrical insulation performance with high voltage resistance, minimal high-frequency loss, moisture resistance, and excellent insulation properties. They are also highly flame-retardant, aging-resistant, and have a long service life.
Applications include:
- Electronic industry: Temperature compensation wire, low/high temperature wire, aging-resistant wire, flame-retardant wire
- Household appliances: Internal wiring for air conditioners, microwave ovens, electronic disinfectors, rice cookers, electric heaters, ovens, frying pans, and lighting fixtures
Key Features
- Wear and scratch resistant
- Easy to strip
- High and low temperature resistant (-65°C to +200°C)
- Anti-aging and corrosion resistant
- Electromagnetic interference resistant
Cable Specifications
| Parameter |
Specifications |
| Conductor Materials |
Tinned Plated Copper, Silver Plated Copper, Bare Copper |
| Conductor Type |
Stranded or Solid |
| Number Core |
Single Core or Multiple Cores |
| Insulation |
FEP, PTFE, PFA Insulated |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-65°C to +200°C |
| Color Options |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |

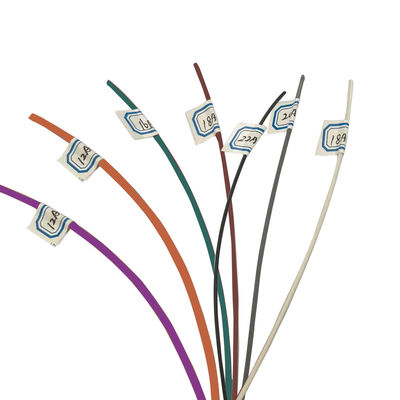

Product Types
| Type |
Description |
| AF-200 |
Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 |
Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 |
Tin/Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 |
Tin/Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 |
Tin/Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
Detailed Cable Structures
| Wire Gauge |
Cross-section |
Conductor Structure |
Max OD (250V) |
Max OD (600V) |
| 36AWG |
0.013mm² |
7/0.05 |
0.65mm |
0.85mm |
| 32AWG |
0.035mm² |
7/0.08 |
0.75mm |
0.95mm |
| 30AWG |
0.05mm² |
7/0.10 |
0.85mm |
1.05mm |
| 28AWG |
0.07mm² |
7/0.12 |
0.9mm |
1.1mm |
| - |
0.1mm² |
7/0.14 |
1.0mm |
1.2mm |
| 26AWG |
0.14mm² |
7/0.16 |
1.1mm |
1.3mm |
| 24AWG |
0.2mm² |
19/0.12 |
1.2mm |
1.4mm |
| - |
0.3mm² |
7/0.23 |
1.25mm |
1.48mm |
| 22AWG |
0.35/0.40mm² |
19/0.16 |
1.4mm |
1.6mm |
| 20AWG |
0.5mm² |
19/0.18 |
1.6mm |
1.8mm |
| - |
0.6mm² |
19/0.20 |
1.75mm |
1.98mm |
| - |
0.75/0.80mm² |
19/0.23 |
1.8mm |
2.1mm |
| 18AWG |
1mm² |
19/0.26 |
2.0mm |
2.2mm |
| 16AWG |
1.2mm² |
19/0.28 |
2.2mm |
2.4mm |
| - |
1.5mm² |
19/0.32 |
2.4mm |
2.6mm |
| 14AWG |
2mm² |
19/0.37 |
2.7mm |
2.9mm |
| - |
2.5mm² |
37/0.30 |
3.4mm |
3.6mm |
| 12AWG |
3mm² |
37/0.32 |
3.6mm |
3.8mm |
| - |
4mm² |
37/0.37 |
4.0mm |
4.2mm |
| 10AWG |
5mm² |
37/0.41 |
4.5mm |
4.7mm |
| - |
6mm² |
37/0.45 |
4.8mm |
5.0mm |
| 8AWG |
8mm² |
133/0.28 |
6.0mm |
6.5mm |
Note: FEP high temperature lead wire specifications and core numbers are not limited to above regulations. Custom specifications are available.
About Xiangtan Shenzhou Special Cable Co., LTD
As a stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience, we produce our own cable compounds to maintain superior quality and competitive pricing. Our product range includes:
- High Temperature wires
- PTFE, FEP, PFA, ETFE cables
- Fluoroplastic Cables
- Hook up wires
- Electronic and Power cables
We operate advanced production facilities with integrated management systems and collaborate with universities and research institutes to develop customized cable solutions.
Exhibition & Global Presence
We regularly participate in international exhibitions including:
- Middle East Electricity Exhibition in Dubai
- China-ASEAN Exposition
- Power-Gen India
Our products have been exported to the US, Venezuela, India, Vietnam, Bangladesh, Africa, and other regions. We maintain long-term partnerships with international clients, including government agencies like Ezeagu Government of Nigeria.
Certifications & Honors
- Contributed to China's Shenzhou 7 manned space flight project
- Participated in China's first manned space flight development and testing
- Collaborated with China Academy of Launch Vehicle Technology on the "Arrow of God" space exploration project
Our Services
- Free technical consultation before, during, and after sales
- Free samples and design services
- Special monitoring and detection during manufacturing
- 100% free insurance for internal transportation
- OEM & ODM services available
- Small order quantities accepted
Packing & Shipping
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer engaged in research, development, and sales of military and consumer cable wire and cable compounds, located in Hunan Province, China.
2. What is your company's strengths?
As a 21-year veteran supplier to China's aerospace and military sectors, we produce our own cable compounds to ensure superior quality and competitive pricing.
3. How do you guarantee product quality?
Quality control is prioritized at every stage from design and material procurement to manufacturing, semi-finished product testing, and final inspection.
4. What's the warranty of your products?
We provide a 1-year complete warranty with unconditional replacement or return for quality issues.
5. How can I get samples?
We provide sample orders. Small quantities available in stock can be provided free with customer covering freight costs.
