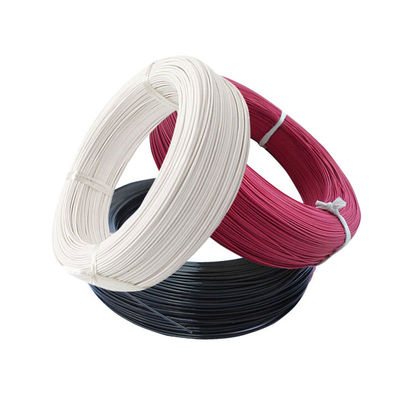

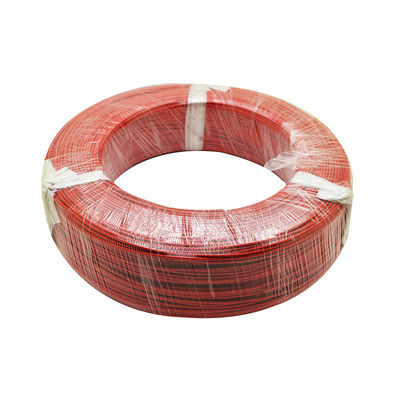

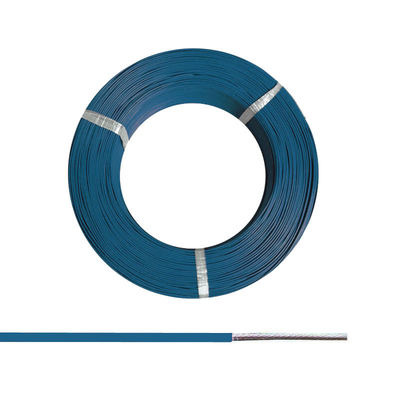

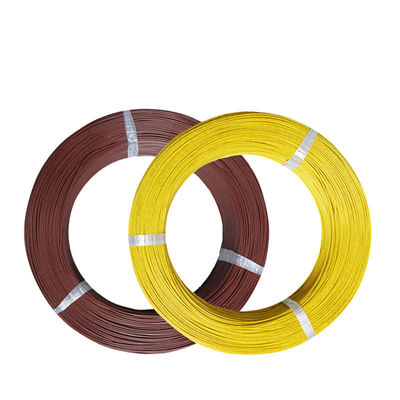

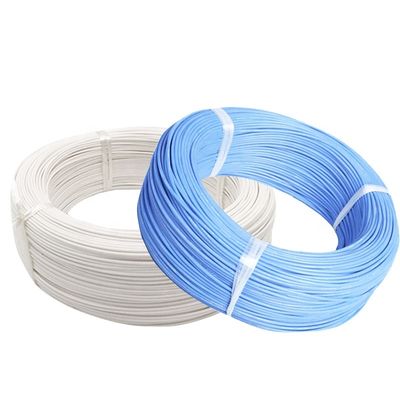

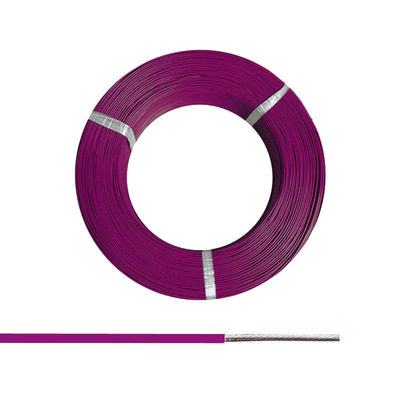

7 Strand PFA Insulated Electrical Heating Wire with Corrosion and Abrasion Resistance

500
MOQ
7 Strand PFA Insulated Electrical Heating Wire with Corrosion and Abrasion Resistance
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Υλικό αγωγού: Χαλκός
Διάμετρος: 20 AWG, 22 AWG, 24 AWG, 18 AWG
Μόνωση: PFA
Ονομαστική τάση: AC600V και παρακάτω
Τύπος αγωγού: Λανθάνον, συμπαγές ή λανθάνον
Μέγεθος μονοσύρματος: 1,0 mm, 0,5 mm, 0,3 mm, 0,2 mm
Θερμοκρασία εργασίας: -65℃~+250℃
Πάχος μόνωσης: 0,20mm έως 1,2mm
Εξωτερική διάμετρο: 0,70 χιλιοστά έως 17,2 χιλιοστά
Μέγιστη αντίσταση στον αγωγό: 376.2 ω/km έως 0.210 Ω/km
Μόνωση: ≥1x103mΩ
Σχετική υγρασία: 95%± 3
Τάση δοκιμής: 2000V/5min
Αριθμός πυρήνων: 1-5 πυρήνας
Τμηματική περιοχή: 0,05mm2 έως 95mm2
Επισημαίνω:

7 Strand PFA Insulated Wire

,

Corrosion Resistant Electrical Heating Wire

,

Abrasion Resistant PFA Coated Wire
Βασικές πληροφορίες
Τόπος καταγωγής: Χουνάν, Κίνα
Μάρκα: Sanco Cable
Αριθμό μοντέλου: Afk-250
Πληρωμής & Αποστολής Όροι
Περιγραφή προϊόντων
PFA Insulated 7 Strand Electrical Heating Wire
Product Description

PFA insulated wire is a high-performance electrical wire featuring polytetrafluoroethylene (PFA) insulation. This thermoplastic polymer offers exceptional resistance to heat, chemicals, and moisture, making it ideal for demanding applications in aerospace, automotive, electronics, and telecommunications industries where reliable performance in harsh conditions is critical.

Key Features
  • Designed for aviation and electronics industries under high temperature radiation conditions
  • Small diameter with excellent abrasion and scratch resistance
  • Easy to peel with superior temperature resistance (-65℃ to +250℃)
  • Anti-aging, corrosion resistant, and anti-interference properties
  • Low dielectric constant and stable electrical performance
Technical Specifications
Parameter Value
Working Temperature -65℃ to +250℃
Rated Voltage AC110V, AC250V, AC600V or lower
Insulation Resistance ≥ 1×10³ MΩ
Relative Humidity 95% ±3
Test Voltage (AC 50Hz) 2000V/5min
Product Types
Type Description
AFK-250 Silver plated copper wire core high temperature PFA insulated electric wire
AFKP-250 Silver plated copper wire high temperature PFA insulated shielding electric wire
7 Strand PFA Insulated Electrical Heating Wire with Corrosion and Abrasion Resistance 0
Cable Specifications
Sectional Area (mm²) Conductor Construction (mm) Insulation Thickness (mm) Outer Diameter (mm) Max Conductor Resistance DC20℃ (Ω/km)
0.05 7/0.10 0.20 0.70 376.2
0.20 7/0.20 0.30 1.20 83.5
0.35 19/0.16 0.30 1.40 49.5
0.50 19/0.18 0.35 1.60 36.0
0.75 19/0.23 0.35 1.85 22.7
1.00 19/0.26 0.35 2.00 19.0
1.20 19/0.28 0.35 2.10 15.3
1.50 19/0.32 0.40 2.40 11.7
2.00 19/0.37 0.40 2.65 9.45
2.50 19/0.41 0.50 3.05 6.86
4.00 37/0.37 0.50 3.60 4.51
6.00 37/0.45 0.50 4.20 3.05
8.00 133/0.28 0.50 5.20 2.16
10.00 133/0.62 0.50 5.80 1.68
16.00 133/0.39 0.60 7.00 1.13
20.00 133/0.45 0.60 8.00 0.886
25.00 196/0.40 0.60 8.80 0.734
35.00 494/0.30 0.70 10.40 0.511
50.00 396/0.40 0.80 12.20 0.358
70.00 551/0.40 1.00 14.60 0.270
95.00 760/0.40 1.20 17.20 0.210
7 Strand PFA Insulated Electrical Heating Wire with Corrosion and Abrasion Resistance 1
General Specifications
Parameter Specification
Conductor Materials Silver Plated Copper or Tinned Plated Copper
Conductor Type Solid or Stranded
Number Cores Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores
Insulation PFA, FEP, PTFE, ETFE Insulated
Rated Voltage 600V or Below
Color Options White, Black, Brown, Green, Red, Yellow, Blue, etc.
Working Temperature -65℃ to +250℃
About Our Company

Xiangtan Shenzhou Special Cable Co., LTD is a leading wire and cable supplier to China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality while offering competitive pricing to global customers.

Our Capabilities
  • Specialized in high temperature wires including PTFE, FEP, PFA, and ETFE cables
  • Advanced production facilities with integrated management systems
  • Collaboration with universities and research institutes
  • Custom cable solutions tailored to specific requirements
  • Strict quality control throughout the manufacturing process
7 Strand PFA Insulated Electrical Heating Wire with Corrosion and Abrasion Resistance 2
Frequently Asked Questions
Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer specializing in research, development, and sales of military and consumer cable wire and cable compounds. Our company is located in Hunan Province, China.

Q: What is your company's strengths?

A: As a stable supplier to China's aerospace and military sectors with 21 years experience, we produce our own cable compounds. This vertical integration allows us to maintain superior quality while offering competitive pricing.

Q: How do you guarantee your product quality?

A: Quality is our top priority. We implement strict quality control measures at every stage - from design and materials procurement to manufacturing and final product inspection - to ensure consistent quality standards.

Q: What's the warranty of your products?

A: We provide a 1-year complete warranty service. If products have quality problems, we will replace or return them unconditionally.

Q: How can I get samples?

A: We can prepare sample orders for you. For small quantities available in stock, we can provide samples free of charge (with freight costs covered by the customer).
