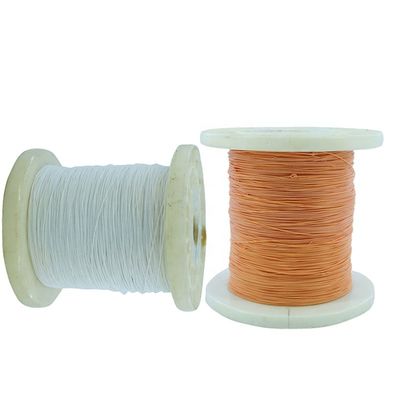

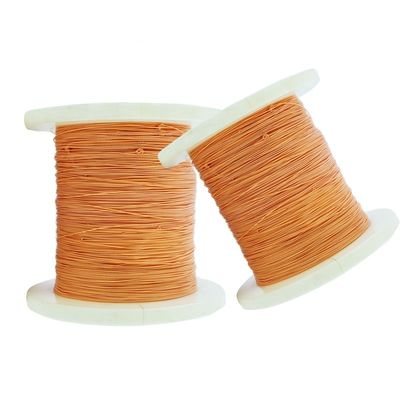

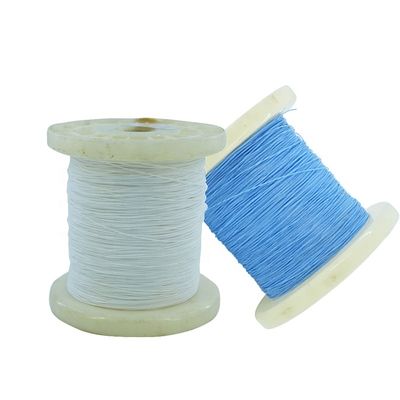

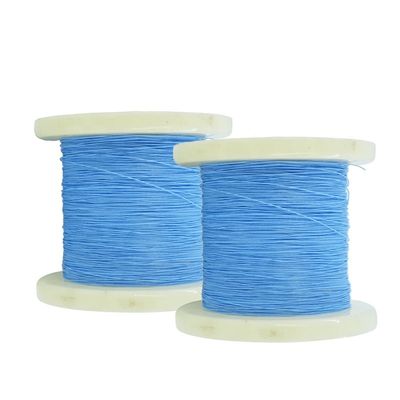

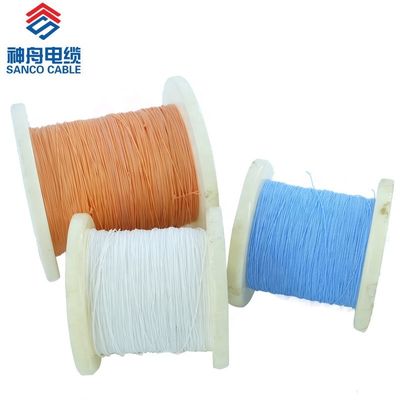

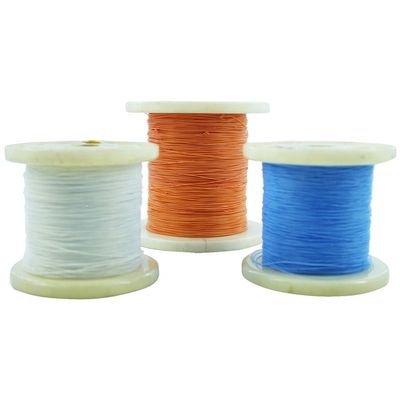

Name: 600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design
Brand: Xiangtan Shenzhou Special Cable Co., Ltd
SKU: Afr-250
Price: 1.10 USD
Availability: InStock

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Υλικό αγωγού: Χαλκός

Μόνωση: Πτέρυγα

Ονομαστική τάση: 600V ή Κάτω

Τύπος αγωγού: Προσαραγμένος ή στερεός

Διατομή: 0.05-3mm2

Θερμοκρασία εργασίας: -60℃~+250℃

Επιλογές χρωμάτων: Λευκό, μπλε, κόκκινο, μαύρο, κίτρινο, πράσινο, διαφανές, κίτρινο/πράσινο

Πυρήνας αριθμού: Μονή πυρήνα ή πολλαπλοί πυρήνες

Πάχος μόνωσης: 0,3-0,68mm

Εξωτερική διάμετρο: 0,9-3,6 χιλιοστά

ΣΥΝΕΧΗΣ αντίσταση: 6.8-383Ω/km

Κατασκευή αγωγών: Stranded (π.χ. 7/0.10, 19/0.16)

Μόνωση: PTFE, FEP, PFA

Ονομαστική θερμοκρασία: -80 ~+250ºC

Επιλογές αγωγού: Ασημένιος χαλκός, κονσερβοποιημένος χαλκός, γυμνός χαλκός

Επισημαίνω:

600V Rated PTFE Insulated Wire

Copper Conductor High-Voltage Lead Wire

Stranded PTFE Cable

Βασικές πληροφορίες

Τόπος καταγωγής: Χουνάν, Κίνα

Μάρκα: Sanco Cable

Αριθμό μοντέλου: Afr-250

Πληρωμής & Αποστολής Όροι

Εκθεσιακός χώρος

600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design

Περιγραφή προϊόντων

PTFE Insulated High-Voltage Lead Wire

250°C PTFE Insulated High-Voltage Lead Wire

What is PTFE Wire?

PTFE wire is an electrical wire coated with polytetrafluoroethylene (PTFE)
PTFE offers excellent resistance to high temperatures, chemicals, and electrical stress
Ideal for high-performance applications in aerospace, defense, and medical equipment
Suitable for harsh environments where other wires would fail
Features excellent flexibility and low friction properties for easy installation

Product Features

Excellent corrosion resistance

Oil, acid, alkali, and oxidant resistant

Superior electrical insulation capability

High voltage and moisture resistance

Flame-retardant and anti-aging

Long service life

Cable Specifications

Conductor Materials	Silver Plated Copper, Tinned Plated Copper, Bare Copper
Conductor Type	Stranded or Solid
Insulation	PTFE, FEP, PFA Insulated
Number Core	Single Core or Multiple Cores
Size	0.05~3mm²
Rated Voltage	600V or Below
Rated Temperature	-80°C to +250°C
Color	White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green

Types and Names

Type	Name
AF-200	Silver plated copper wire conductor high temperature FEP insulated wire
AF-200-1	Tinned copper wire conductor high temperature FEP insulated wire
AFP-200	Tinned copper wire or silver plated copper wire core FEP insulated shielding wire
AFS-200	Tinned copper wire or silver plated copper wire core FEP insulated stranded cable
AFSP-200	Tinned or silver coated copper FEP insulated stranded shielding cable
AFR-200	Bare Copper wire conductor PTFE film insulated lead wire
AFR-250	Silver plated copper wire conductor PTFE film insulated lead wire
AFP	Bare Copper wire conductor PTFE film insulated screen lead wire
AFP-1	Silver plated copper wire conductor PTFE film insulated screen lead wire
AFRP-200	Bare Copper wire conductor PTFE film insulation shield lead wire
AFRP-250	Silver plated wire copper conductor PTFE film insulation shield lead wire
AFRPF-250, AFPF	Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire

Cable Structures

Nominal Section (mm²)	Conductor Construction (No/mm)	Insulation Thickness (mm)	Outer Diameter (mm)	D.C. conductor resistance at 20°C (Ω/km)
0.05	10/0.08	0.3	0.9	383 \| 370
0.06	7/0.10	0.3	0.9	348 \| 339
0.08	7/0.12	0.3	0.96	286 \| 280
0.1	7/0.14	0.3	1.02	157 \| 150
0.12	7/0.15 or 30/0.07	0.3	1.05	152 \| 145
0.14	7/0.16 or 19/0.10	0.3	1.08	136 \| 130
0.15	30/0.08	0.3	1.1	111 \| 105
0.2	7/0.02 or 19/0.12	0.3	1.2	87 \| 82
0.35	19/0.16	0.3	1.4	57 \| 54
0.5	19/0.18	0.3	1.5	40 \| 37.5
0.8	19/0.23	0.32	1.79	24 \| 23
1	19/0.26	0.35	2	21 \| 20
1.2	19/0.28	0.45	2.3	19 \| 18
1.5	19/0.32	0.45	2.5	13 \| 12
2	19/0.37	0.45	2.75	10 \| 9
2.5	37/0.30	0.55	3.2	8 \| 7
3	37/0.32	0.68	3.6	6.8 \| 6.4

Note: PTFE Wire core specifications can be customized according to requirements.

Xiangtan Shenzhou Special Cable Co., LTD

We are a stable wire and cable supplier of China's aerospace and military with 21 years experience. Our cable compounds are produced in-house, ensuring superior quality and competitive pricing for global customers.

Main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and more.

We feature advanced production facilities, integrated management systems, and collaborations with universities and research institutes. Custom cable solutions are available to meet specific requirements.

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer specializing in research, development and sales of military and consumer cable wire and cable compound, located in Hunan Province, China.

2. What is your company's strengths?

As a stable supplier to China's aerospace and military sectors for 21 years, we produce our own cable compounds, ensuring superior quality and competitive pricing.

3. How do you guarantee your product quality?

Quality control is prioritized throughout the entire process - from design and materials procurement to manufacturing and final product inspection.

4. What's the warranty of your products?

We provide 1 year complete warranty service. Products with quality issues will be replaced or refunded unconditionally.

5. How can I get the samples?

We can prepare sample orders. Small quantities available in stock may be provided free of charge, with freight costs covered by the customer.
